Naziv:

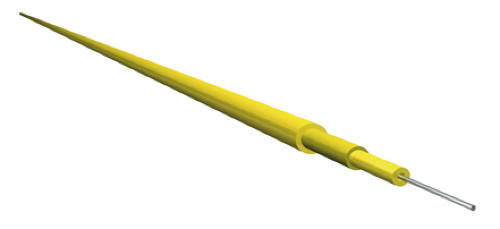

01-E9/CWJH-E27,1-fiber, 9/125 µm, 2.7 mm, jacket colour: yellow

Design:

Properties:

Metal free indoor cable
Each fiber strain relieved
For direct connector assembly with strain relief
Tube can be stripped up to 2 m
Halogen free and non-corrosive fire gases
Jacket material according to UL 94V-0
Low fire load for high safety requirements

Prenos:

Naziv:

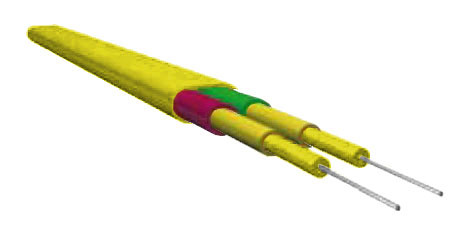

02-E9/CWJH-E27,2-fiber, 9/125 µm, 2.7x5.4 mm, jacket color: yellow

Design:

Properties:

Metal free indoor cable
Each fiber strain relieved
For direct connector assembly with strain relief
Tube can be stripped up to 1 m in one piece
Tight bending radii
Low smoke, halogen free and self-extinguishing
Jacket material according to UL 94V-0
Low fire load for high safety requirements

Prenos:

Naziv:

02-E9/CWJH-AE27,2-fiber, 9/125 µm, 3.5x6.2 mm, jacket color: yellow

Design:

Properties:

Metal free indoor cable
Each fiber strain relieved
For direct connector assembly with strain relieved
Tube can be stripped up to 1 m in one piece
Low smoke, halogen free and self-extinguishing
Jacket material according to UL 94V-0

Prenos:

Naziv:

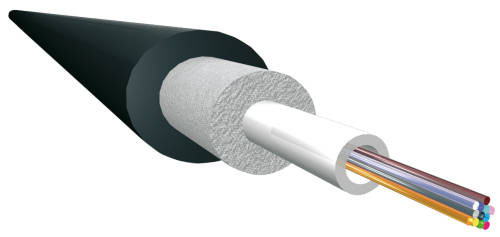

04-4E9/W(ZNG)Y-G85,4-fiber, 9/125 µm, 8.5 mm, jacket color: PE black

Design:

Multi-fiber loose tube
Jelly-filled with 12 fibers
Strain relief and rodent protection: Glass-roving
Diameter: 8,5mm
Jacket material: PE or LSFH^TM
Jacket colour: black

Properties:

Metal free outdoor cable
Rodent-protected, glass-armoured
For use in ducts and unprotected environment
High chemical resistance against acids and alkalies
For high mechanical requirements
Halogen free and non-corrosive fire gases
Longitudinal and transversal watertight cable
Suitable for MASTERLINE applications

Prenos:

Naziv:

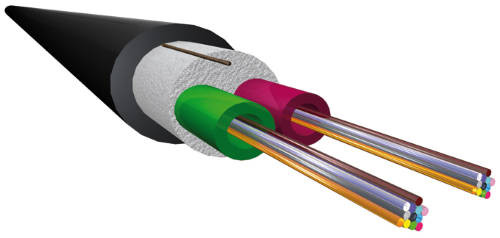

24-12E9/W(ZNG)Y-G94,24-fiber, 9/125 µm, 9.4x8.8 mm, jacket color: PE black

Design:

Two multi-fiber loose tubes
Jelly-filled with 12 fibers
2 ripcords
Strain relief and rodent protection: Glass-armouring
Jacket material: PE or LSFH^TM
Jacket colour: black

Properties:

Metal free indoor and outdoor cable
Rodent-protected, glass-armoured
For use in ducts and unprotected environment
Ripcord for easy jacket removal
Low smoke, halogen free and self-extinguishing
Longitudinal and transversal watertight cable
Suitable for MASTERLINE applications

Prenos:

Naziv:

A-DQ(ZN) 2Y 4x12 E9/125,optični kabel, 48 vlaken

Design:

Dielectric central element
Stranded buffer tubes, filled with thixotropic filling compound
Swellable
PE outer
Jacket color: black

Properties:

metal-free cable, hence no ground loop problems
PE jacket, UV and microbe resistant
Dry cable core with swellable elements
Water blocking according to IEC 60794-1-2-F5
Can be directly buried and installed in ducts
Thin and robust cable
Preassembled length available
Telcordia (Bellcore) color standard for fibers and tubes

Prenos:

Naziv:

A-DQ(ZN) 2Y 8x12 E9/125,optični kabel, 96 vlaken

Design:

Dielectric central element
Stranded buffer tubes, filled with thixotropic filling compound
Swellable
PE outer
Jacket color: black

Properties:

metal-free cable, hence no ground loop problems
PE jacket, UV and microbe resistant
Dry cable core with swellable elements
Water blocking according to IEC 60794-1-2-F5
Can be directly buried and installed in ducts
Thin and robust cable
Preassembled length available
Telcordia (Bellcore) color standard for fibers and tubes

Prenos:
